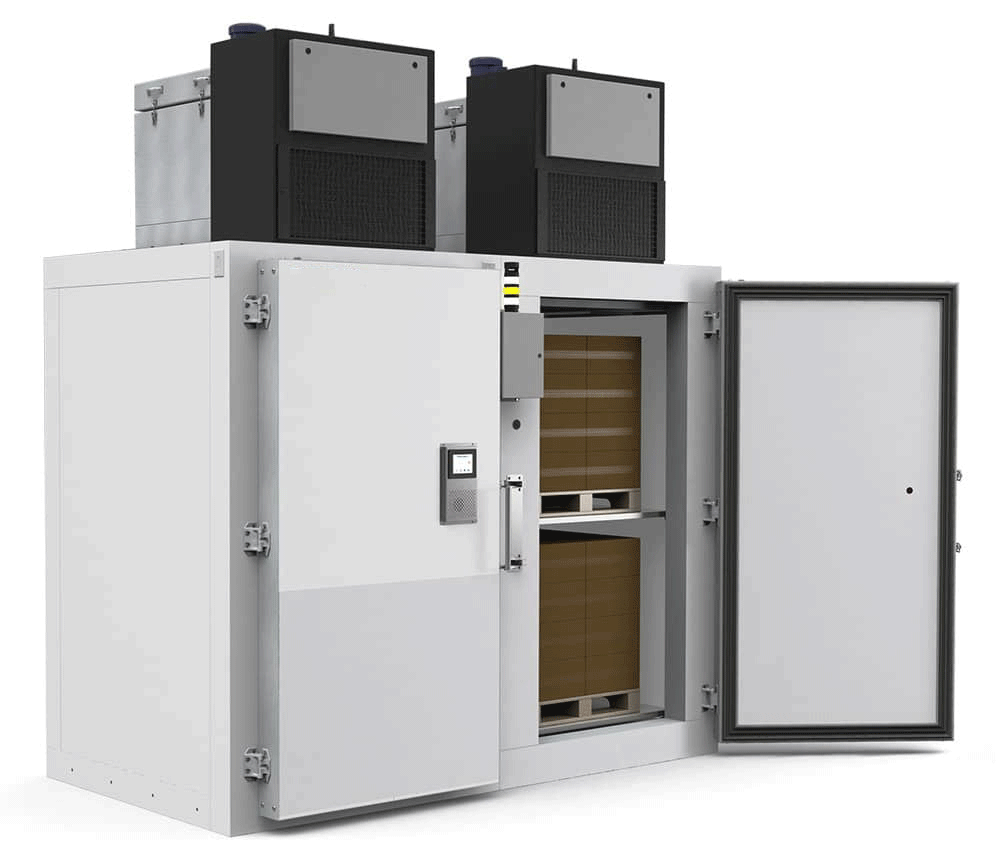

Ultra-Low Chamber Pallet Storage Freezer | -20°C to -80°C

• Total Volume: 311 cu.ft / 8,438 l
• Door Opening Size (W x H)/QTY: 41” x 87” / 2 (1041.4 x 2209.8 mm)
• Pallet Capacity (Euro Pallet):
  • 2 - 32” x 47” x 50” (W x D x H) (2 -813 x 1194 x 1270 mm)
  • 4 - 32” x 47” x 36” (W x D x H) (4 - 813x 1194 x 914.4 mm)
• Area Footprint: 67.5 sq.ft./ 6.28 m2
• Interior Dimensions (W x D x H): 110” x 54” x 90” (2794 x 1371 x 2286 mm)
• Exterior Dimensions (W x D x H): 122” x 66” x 143” (3098 x 1676 x 3632 mm)
• Unit Weight: 3,900 lbs. (1,769 Kg)
• Shipping Weight: 4,500 lbs. (2,132 Kg)
• Application: Pharmaceutical / CDMO’s and CRO’s
• Chamber Volume: 311 Cu. Ft. (8,806 L)
• Temperature Range: -20°C to –80°C
• Electrical: 208/230 VAC, 1 Ø, 60Hz, 60Hz
• Circuit Breaker: 2 x 30 amp
• Ambient Operating Temperature: +18°C to +30°C
• Uniformity Air Temperature: +/- 3.0°C (empty chamber)
• Uniformity Product Temperature: +/- 1.0°C
• Evaporator/QTY: Forced - Air / 2
• Condenser/QTY: Forced - Air Cooled / 2
• Metering Device: Electronic
• High Stage/ Low Stage: R-449A / R-508B
• Air Cooled Condenser Requirements: +18°C to +30°C
• Water Cooled Condenser Requirements:
  • Tower Water 85°F (29.5°C), Max. flow rate 7gpm (26.5 l/min)
  • Chilled Water 45°F (7.2°C), Max. flow rate 3.5gpm (13.25 l/min)
• Temperature Controller/QTY: Microprocessor/ 2
• Display/QTY: LCD/ 2
• Sensor/QTY: RTD PT100 Din A/ 2
• Alarms: High/Low temperature, door ajar, power failure, remote alarm contacts
• Dry Contacts: Standard (C, NO, NC)
• Warranty: 1 year parts & labor
