| Model | MS-Q21WT | MS-Q21WT | MS-Q20WT | MS-Q20WT |
|---|---|---|---|---|
| Exterior (D x W x H) | 1800*800*1000 | 2000*800*1000 | 1800*750*1000 | 2000*750*1000 |

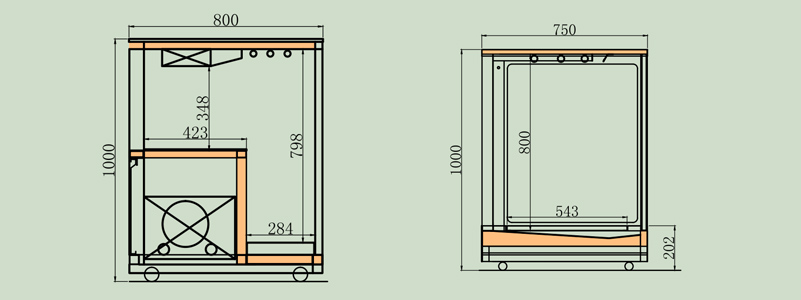

| Interior (D x W x H) | Reference drawings | Reference drawings | Reference drawings | Reference drawings |
| Doors | Glass sliding door | Glass sliding door | Glass sliding door | Glass sliding door |
| Unit Weight | 162KG | 180KG | 153KG | 175KG |
| Energy Consumption (KWhr/day) | 14.4KWH/24H | 18KWH/24H | 9KWH/24H | 11.4KWH/24H |
| Electrical Power/ Current | 1200W | 1500W | 750W | 950W |
| Number of Shelves /Type | Adjustable shelf |
| SPECIFICATION | CONTENT |
|---|---|
| rated voltage： | 220 V~240V / 50 Hz Customizable 110V~240V/50-60HZ |
| Power Plug/Cord Length | 16A、3M |
| Refrigerating system | Air-Cooling |
| Compressor brand | Panasonic Sanyo Can be modified according to needs |
| Refrigerant Type | R-404A / R290 / R507 Can be modified according to needs |
| Evaporators | Copper Tube with aluminum fins |
| Condenser | Copper Tube with aluminum fins |
| Throttle modes | expansion valve |
| temperature control | Electronic temperature controller with display |
| Adjustable Set Point Range | 0~20℃ |
| Factory Set Point | 2~15℃ |
| Lighting control | Exterior switch-activated interior LED lighting |
| Light type | Neutral white LED lighting |
| Leveling Legs | Standard |
| Doors type | panes made of combined, double tempered glass (low-E) or Electric defogging |
| Night curtain | Deceleration curtain |
| Ambient Operating Temp. (°C) | 20°C to 32°C |
| Application Environment | Non-corrosive, non-flammable, non-explosive |
| Indoor/Outdoor Use | Indoor use only |
| Design condition | 3（25℃，60%RH） |
| Shelf adjustment | adjustable |
| Compressor Location | Bottom or Top |
| Condensate treatment | Automatic condensate evaporation system |
| defrost | defrosting automatic |
| Cabinet /color | Black / White / grey ☑ custom |
| Internal Cabinet material | Galvanized sheet paint |
| foaming | cyclopentane |
| Certifications & Compliances | ISO9001、CE Can apply for local national standards |
