| Model | MS-Q18YA | MS-Q19YA | ||
|---|---|---|---|---|
| Exterior (D x W x H) | 2000 (diameter) * 1750 (height) | 1500 (diameter) * 1650 (height) | ||

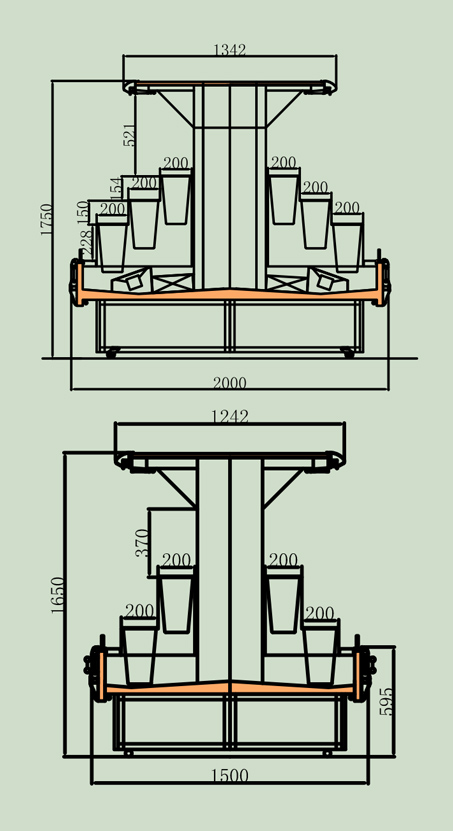

| Interior (D x W x H) | Reference drawings | Reference drawings | ||
| Doors | / | / | ||
| Unit Weight | 360KG | 270KG | ||
| Energy Consumption (KWhr/day) | 37.5KWH/24H | 27KWH/24H | ||
| Electrical Power/ Current | 2500W 、12A | 1800W, 8A | ||
| Number of Shelves /Type | Three layer flower bucket | Two layer flower bucket | ||
| SPECIFICATION | CONTENT |
|---|---|
| rated voltage： | 220 V~240V / 50 Hz Customizable 110V~240V/50-60HZ |
| Power Plug/Cord Length | 16A、3M |
| Refrigerating system | Air-Cooling |
| Compressor brand | Panasonic Sanyo Can be modified according to needs |
| Refrigerant Type | R-404A / R290 / R507 Can be modified according to needs |
| Evaporators | Copper Tube with aluminum fins |
| Condenser | Copper Tube with aluminum fins |
| Throttle modes | expansion valve |
| temperature control | Electronic temperature controller with display |
| Adjustable Set Point Range | 0~20℃ |
| Factory Set Point | 2~15℃ |
| Lighting control | Exterior switch-activated interior LED lighting |
| Light type | Neutral white LED lighting |
| Leveling Legs | Standard |
| Doors type | panes made of combined, double tempered glass (low-E) or Electric defogging |
| Night curtain | Deceleration curtain |
| Ambient Operating Temp. (°C) | 20°C to 32°C |
| Application Environment | Non-corrosive, non-flammable, non-explosive |
| Indoor/Outdoor Use | Indoor use only |
| Design condition | 3（25℃，60%RH） |
| Shelf adjustment | adjustable |
| Compressor Location | Bottom or Top |
| Condensate treatment | Automatic condensate evaporation system |
| defrost | defrosting automatic |
| Cabinet /color | Black / White / grey ☑ custom |
| Internal Cabinet material | Galvanized sheet paint |
| foaming | cyclopentane |
| Certifications & Compliances | ISO9001、CE Can apply for local national standards |
