  • Description

Basic parameters

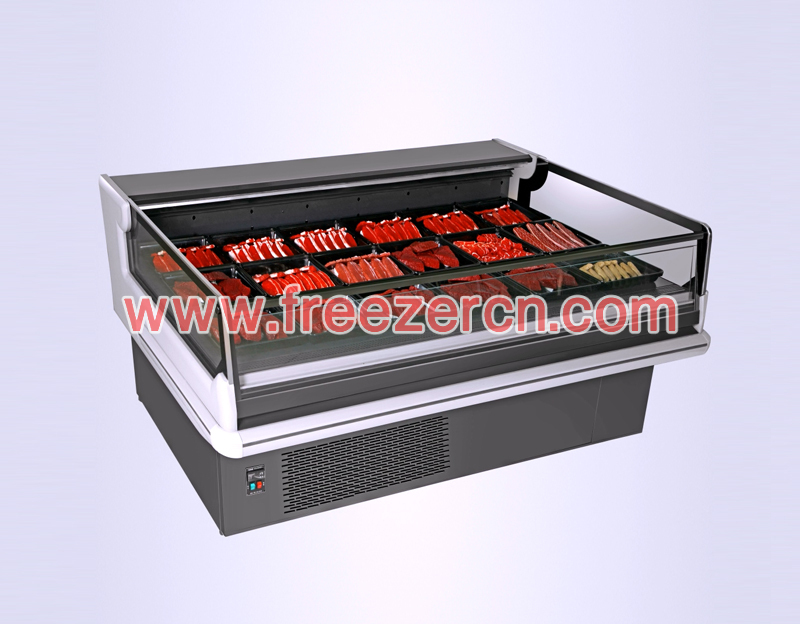

Type 鲜肉柜  Fresh Meat Cabinet 型号 Model SG13SA
Design condition 3(25℃,60%RH) 温度范围 Temperature range H1(-1~7℃)
Energy Efficiency Grade 3 制冷方式 Refrigerating system 风冷 Air-Cooling
(mm) Width 1875/2500/3750 custom (L)Depth 1173  custom
(mm) Height 855  custom (L)Effective Volume 140L/M
Cabinet parameters
Cabinet /color Black / White / grey custom External Cabinet material SGCC
Internal Cabinet material SGCC (mm) front end heigth  /
foaming cyclopentane Inside shelf SGCC
Pallets 1 Pallet weight 100KG/m²
Pallet Bearing 100KG/m² Side panel G: 23mm S: 36mm
G: Glass Side Plate Thickness 23 mm S: Foamed Side Plate Thickness 36 mm
Silk Printing Color of Side Plate Glass Silver gray Glass 19mm LOW-E hollow glass
Foot Foundation bolt & Castor wheel Night curtain Deceleration curtain
(kg) Gross weight 90KG/1000mm
Refrigerating system
Compressor Emerson/Panasonic custom 温度 Evap Temp ℃ -10℃
Refrigerant R404A (g)Refrigerant charge -
Evaporators Copper Tube with aluminum fins Condenser Copper Tube with aluminum fins
Throttle modes danfoss 温度 Temperature control Electronic temperature controller
Defrost Off-Cycle defrost Defrost water treatment Drain pipe
Electric parameter
Condenser Fan motor 机组 Depending on unit allocation Evaporating fan EBM
Lighting Canopy & Shelf LED white X-union 功率(W) Input Power 288W
Plug 16A Plug 220V/50HZ, 380V






Instruction

■ The refrigerator has compact structure, smooth lines, luxurious appearance and European style.;
■ Imported famous brand units, split/integrated optional, truly low noise, high energy efficiency, environmental protection and energy saving, safety, stability;
■ The side panel is designed with hollow toughened glass, which is highly effective anti fog, and further enhances the display effect of objects in the cabinet.;
■ The cabinet is made of stainless steel, corrosion resistant, easy to clean, easy to use and does not contaminate food.;
■ The multi-functional shelf can be assembled freely, and the front side and the bottom of the shelf have built-in energy-saving lamps, which can be adjusted arbitrarily according to the display items, showing the best display effect.;
■ The whole polyurethane foam technology, environmental protection foam material, high strength, high density, energy saving and electricity saving.;
■ Microcomputer automatic temperature control technology, automatic defrosting system, less error, easier operation, more accurate temperature control;
■ The unique waterfall micro air supply design ensures that the products are evenly distributed and the refrigeration effect is better.;
■ The imported balanced thermal expansion valve improves the utilization rate of evaporator.;
■ The pull-out air curtain is installed at night to save energy and electricity.;
■ The asymmetric eddy cooling air curtain, the large area pure copper tube evaporator, the refrigeration is more uniform, the speed is quicker.;
■ Streamlined metal strake is inlaid, no deformation, corrosion resistance, the appearance is more luxurious style.;
■ Built-in air curtain with casters, easy to move and use; non-fluorine environmental protection refrigerant, environmental damage coefficient is zero, truly achieve green environmental protection;
■ Wide Climate Band and Wide Voltage Band with Dual Width Design. It is not affected by region, temperature and voltage. It runs freely all the year round. It is more comfortable to use.。
